Specifications: Brand: BSIDE Model: ADMS7 / ADMS9 (Optional) Material: ABS Power supply: 2 x button cell CR2032 3V (Not included) Model(Optional) ADMS7 ADMS9 Direct Current voltage 600V/0.1V ±(1.2%+5) AC voltage 600V/0.1V ±(0.8%+3) Resistance 6000Ω/1Ω ±(1.2%+3) 10mΩ/1Ω ±(1.2%+3) Frequency 1000Hz/1Hz ±(2.0%+10) Capacitance N/A 1000uF/0.1uF±(3.5%+8) 6000uF/0.1uF±(4.5%+10) Diode N/A Yes Continuity When the built-in buzzer sounds, the measured resistance is not more than about 30Ω NCV detection Yes Data hold Yes N/A Display screen HD LCD screen (3.5-inch) Display count 6000 counts 9999 counts Item Size: 140 * 71 * 15.5mm / 5.51 * 2.79 * 0.61in Item Weight: 110g / 3.88oz Package Weight: 186g / 6.56oz Package Size: 16.3*7.3*3.7cm / 6.41 * 2.87 * 1.45in Packing List: 1 * Digital Multimeter 1 * Pair of test leads 1 * User Manual (English)

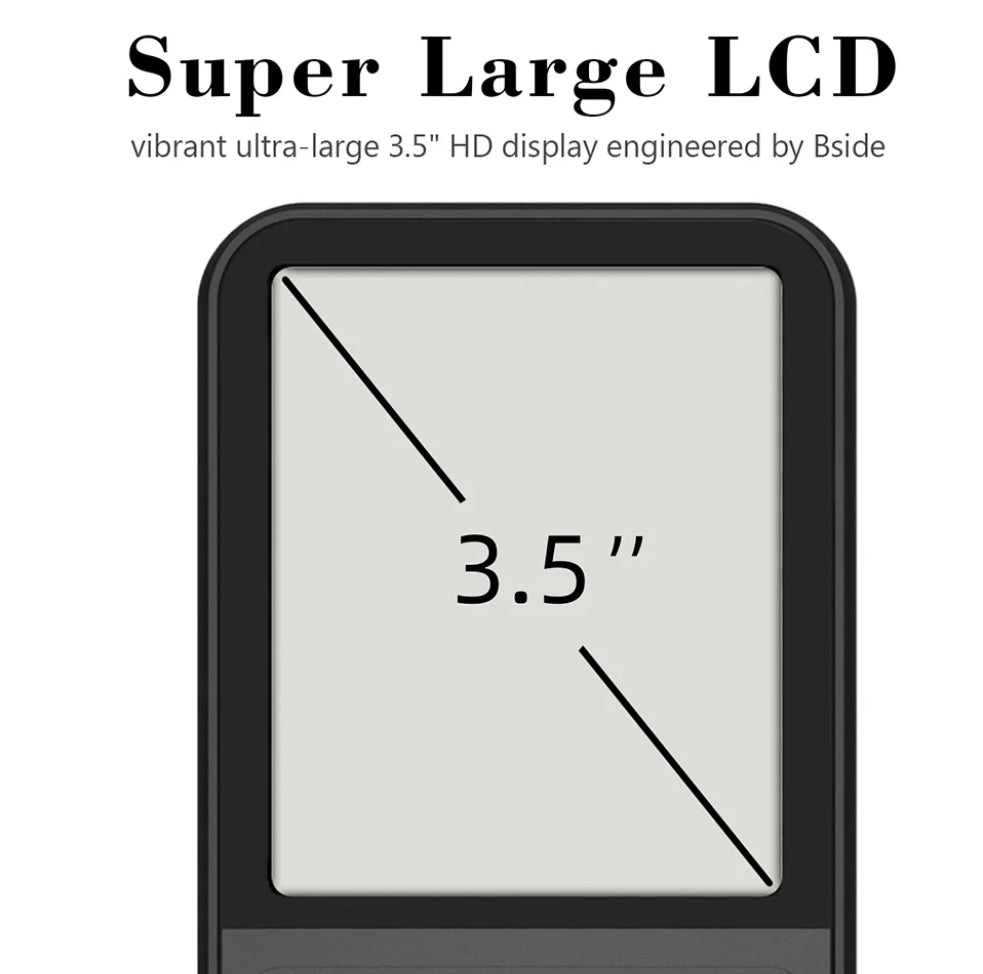

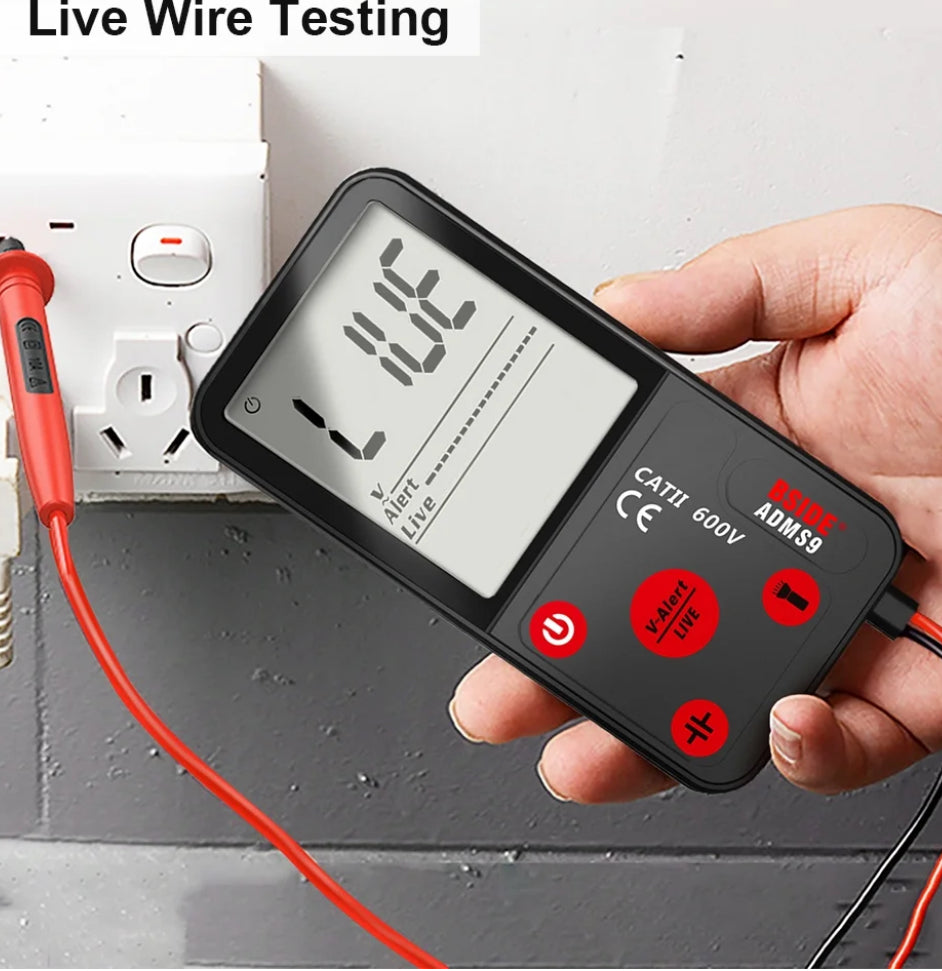

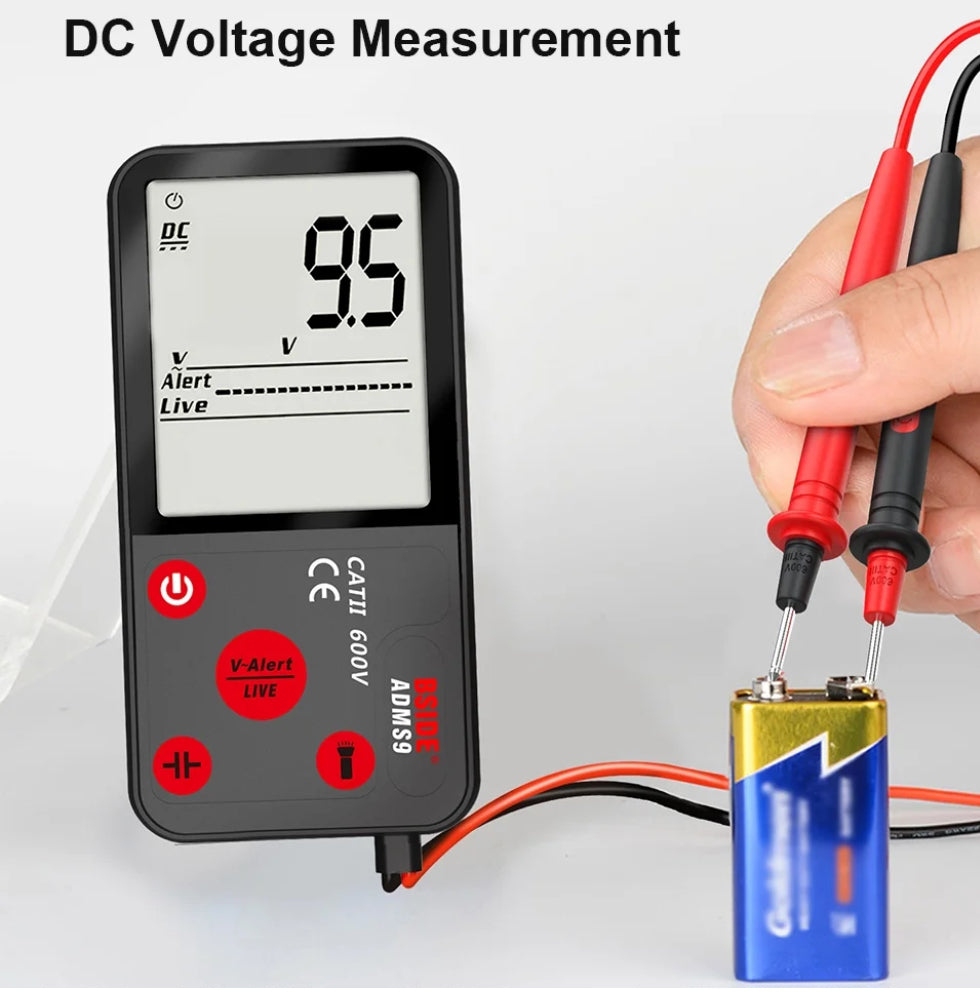

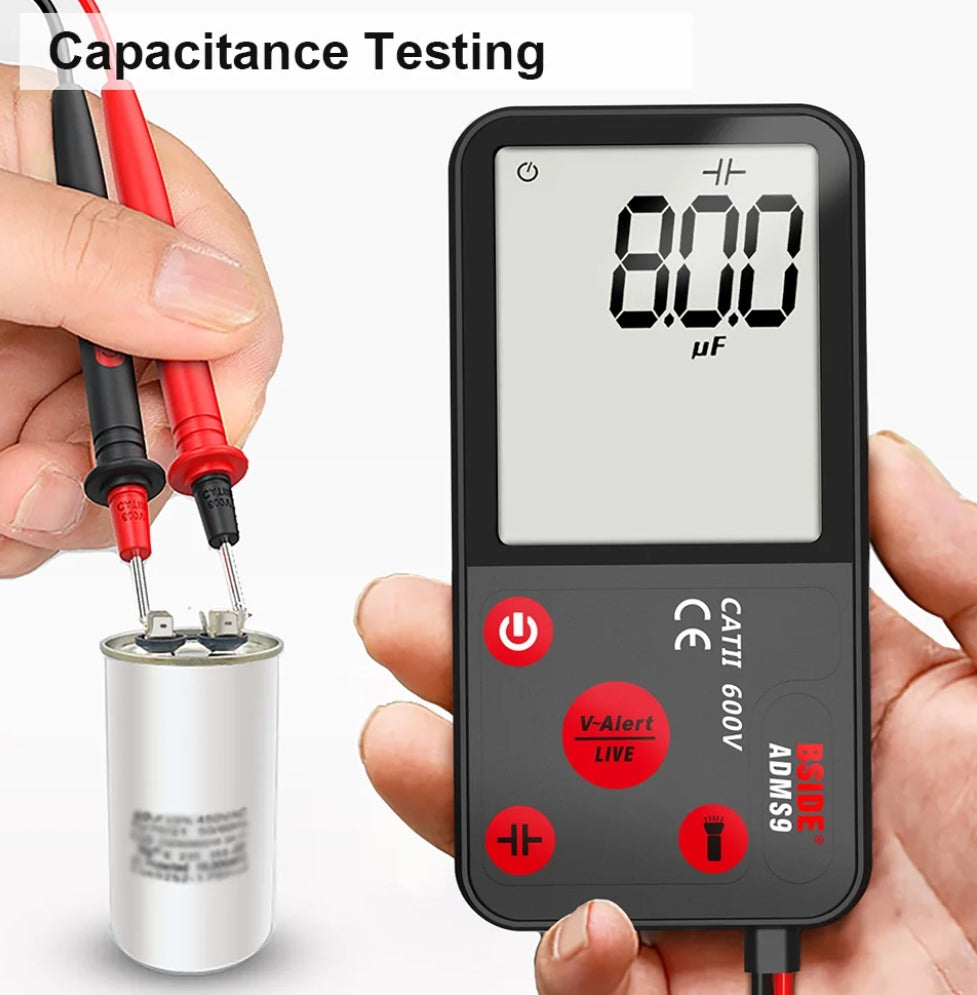

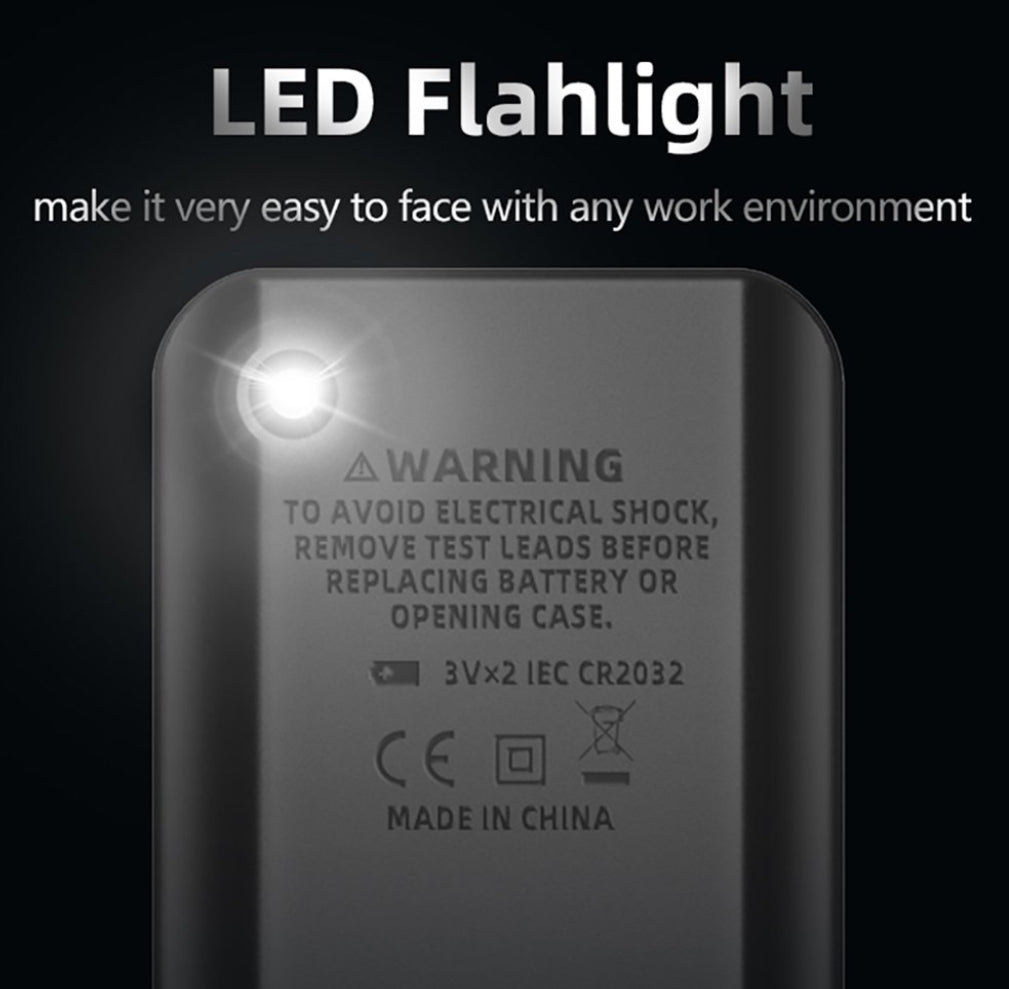

Able to test Direct Current/AC voltage, resistance, frequency, continuity, capacitance, diode and offers NCV detection and live wire identification.|Equipped with a 3.5-inch large screen which shows 9999 counts clear readings, easy to read.|Ultra thin design, just the size of a cell phone, making it extremely portable and easy to carry.|Built-in flashlight makes it convenient to use at night or dark corner.|Practical functions including auto-range measurement, over-load protection, and auto power off in 3 minutes if no operation.
